BLUELIFT B39
Compact Lifts
Product Overview
The Bluelift B39 is an ultra-compact entry-level unit in the extensive Bluelift series, offering 39 ft. vertical reach and 21 ft. horizontal reach, and a choice of power between either the standard Honda gas engine, Hatz diesel, or Lithium Battery power. The Bluelift B39 is easy to transport, operate, and most importantly your safest solution when working temporarily at height.

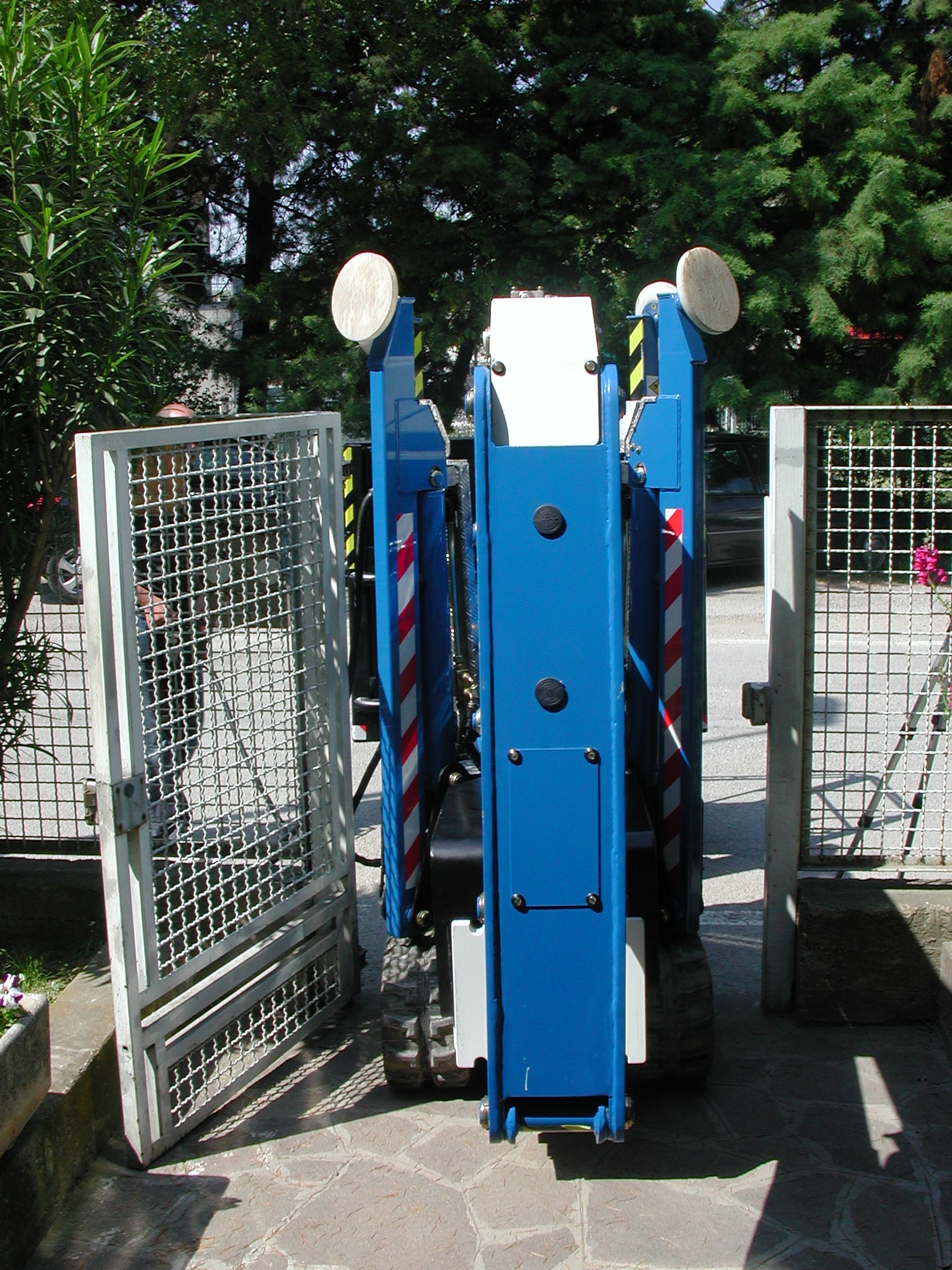

With its 2 ft 6 in width the Bluelift B39 will enter through any single in- or outdoor access point, and its non-marking tracks will leave no smear marks on its way. This makes the Bluelift B39 an excellent choice for work applications with limited height, but severe access and weight restrictions. While the combustion engine models come standard with a 110v emergency power system, they are limited to outdoor applications. The Lithium battery version, however, is equally at home in- as outdoor with a full workday operation range and ability to charge while in use from a standard 110v/15-amp outlet.
Time to retire tall ladders or time-consuming scaffold solutions and change to the Bluelift B39.
Specifications
Standard Equipment
- Single door access
- Honda + 110V for emergency
- Non marking tracks
- Turret rotation 360°
- Two person basket
- Basket Rotation + / – 90°
- 110V to basket
- Hetronic remote control
- Computer controlled (CAN BUS)
- FMS (Function Memory System)
- Support Pads
Performance
| Working height | 39ft |
| Max outreach | 21ft |
| Basket load-max | 440lbs |
| Basket dims | 4ft7in x 2ft5in |
| Basket rotation | +/- 90º |

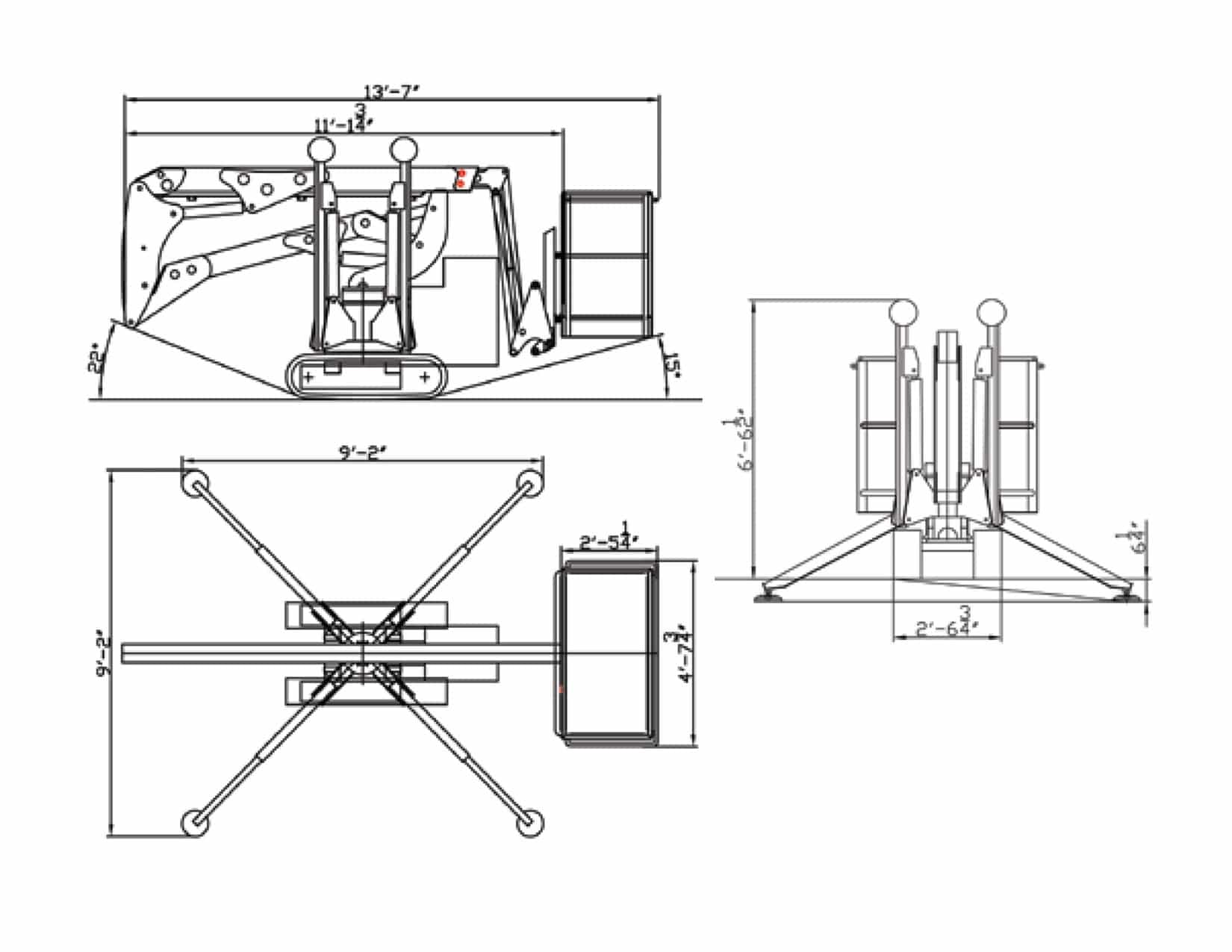

Dimensions
| Height | 6ft6in |
| Length (w/o basket) | 11ft2in |
| Length (w/ basket) | 13ft7in |
| Width | 2ft7in |
| Footprint | 9ft2in X 9ft2in |
| Weight (approx) | 4225 lbs |
| Max pressure, tracks | 7.5 psi |
| Track size(per track) | 44in x 6 1/2 in |
| Max pressure foot pad | 65.3 psi |
| Foot Pad area | 48-1/2 sq in |
| Turret rotation | 360º |
| Drive gradeability | 15° / 28% |
| Set-up gradeability | 5° / 9% |
Power Source
| Honda | Standard |
| Hatz Diesel | Option |
| Lithium Battery | Lithium |

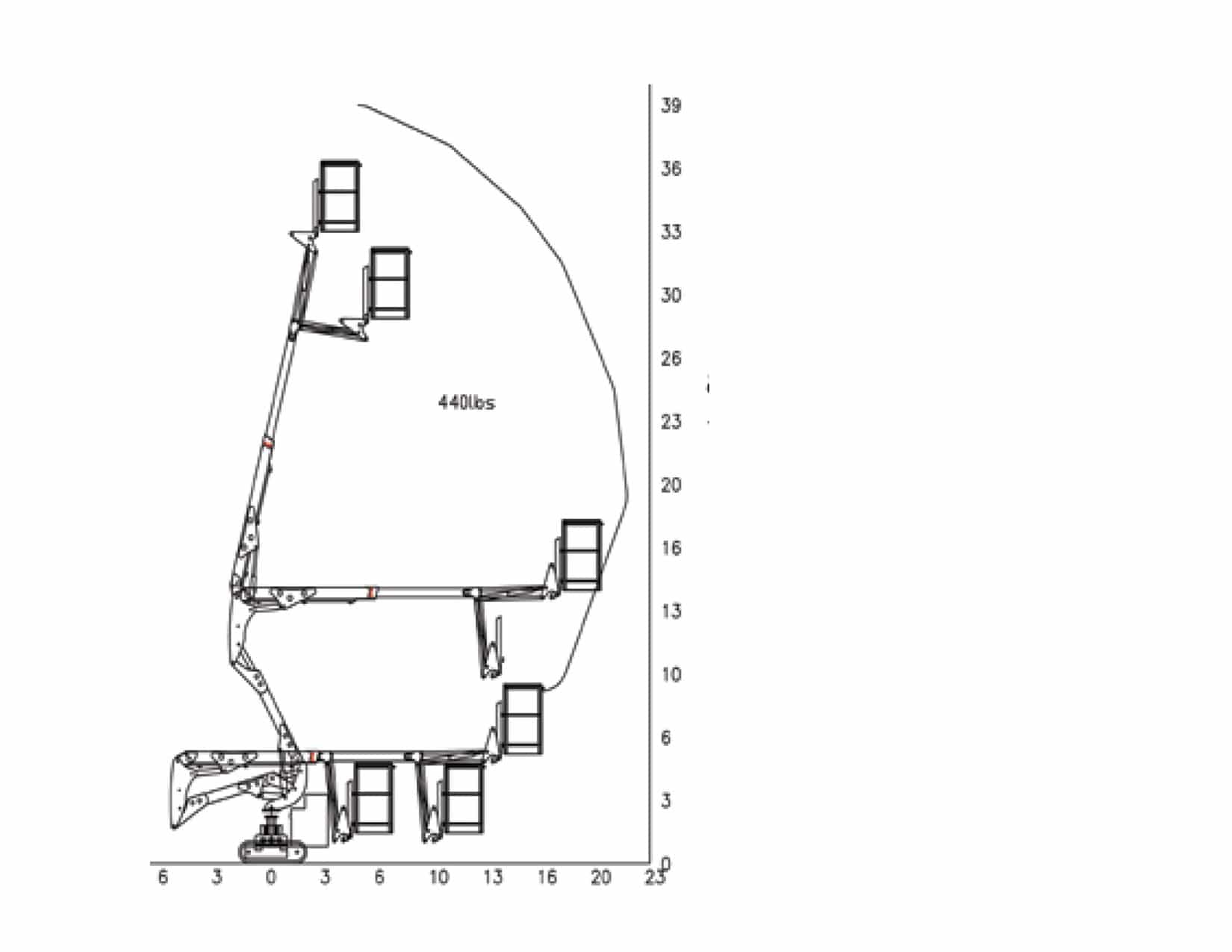

Reach Envelope
