Winlet 770
Glass Handling
Winlet 770 The Winlet 770 increases efficiency and speed in glass and window installation while improving safety in the workplace. The Winlet 770 features 4 suction cups which will hold up to 770 lbs. of material. The Winlet will carry any type of air tight material including: granite, concrete, steel, aluminum, wooden plates, tiles and […]
TYPE
Glass Handling
MODEL SERIES
Winlet
Product Overview
Winlet 770

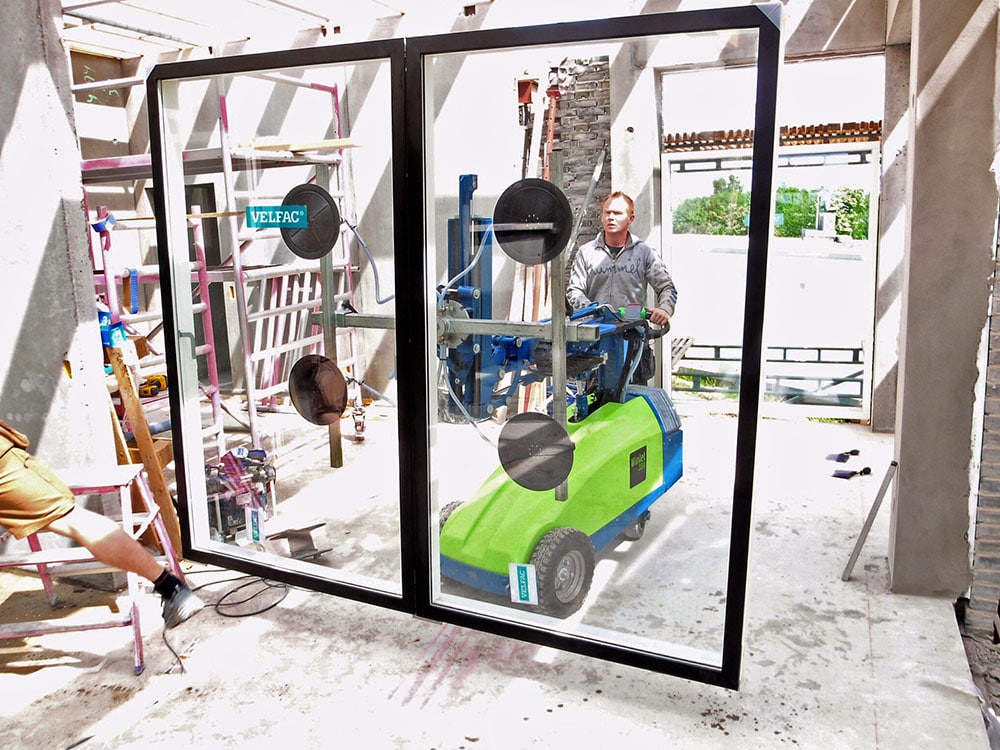

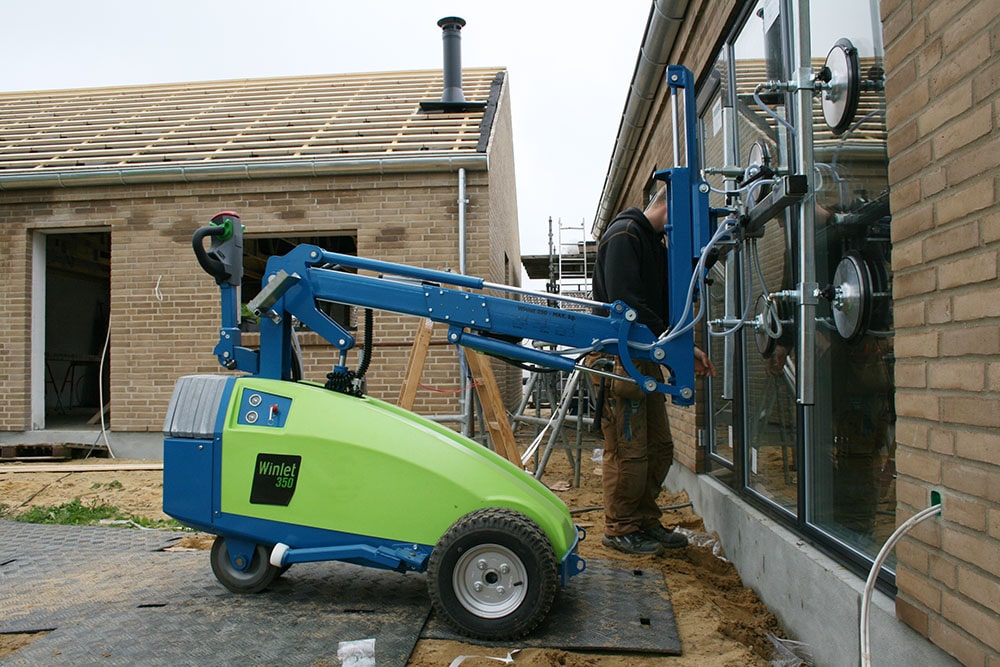

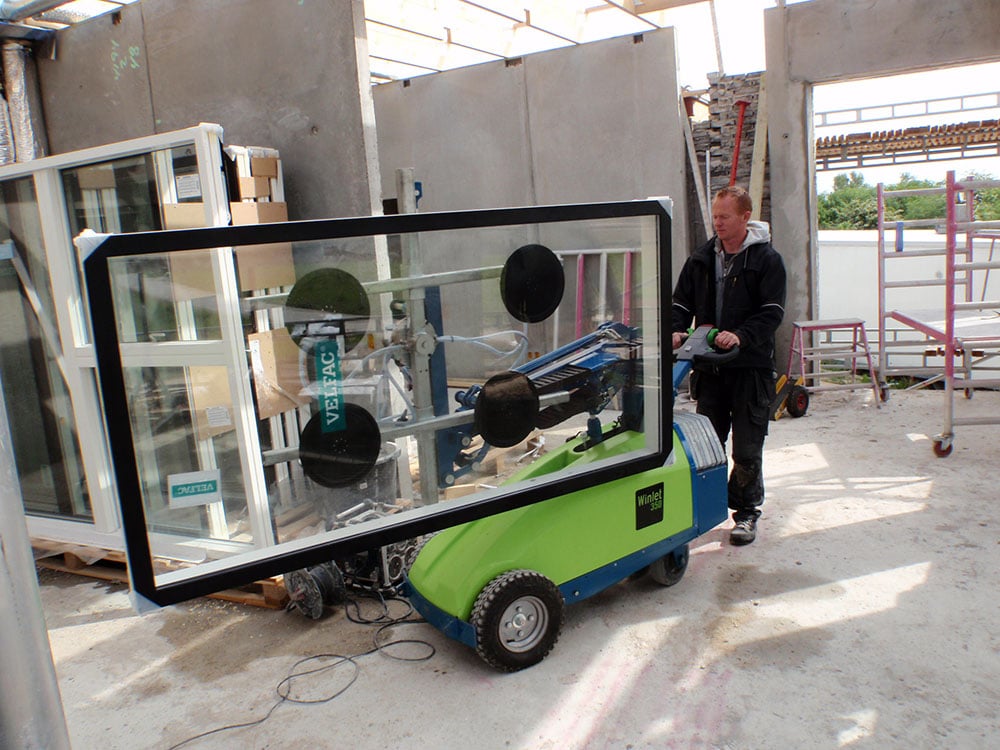

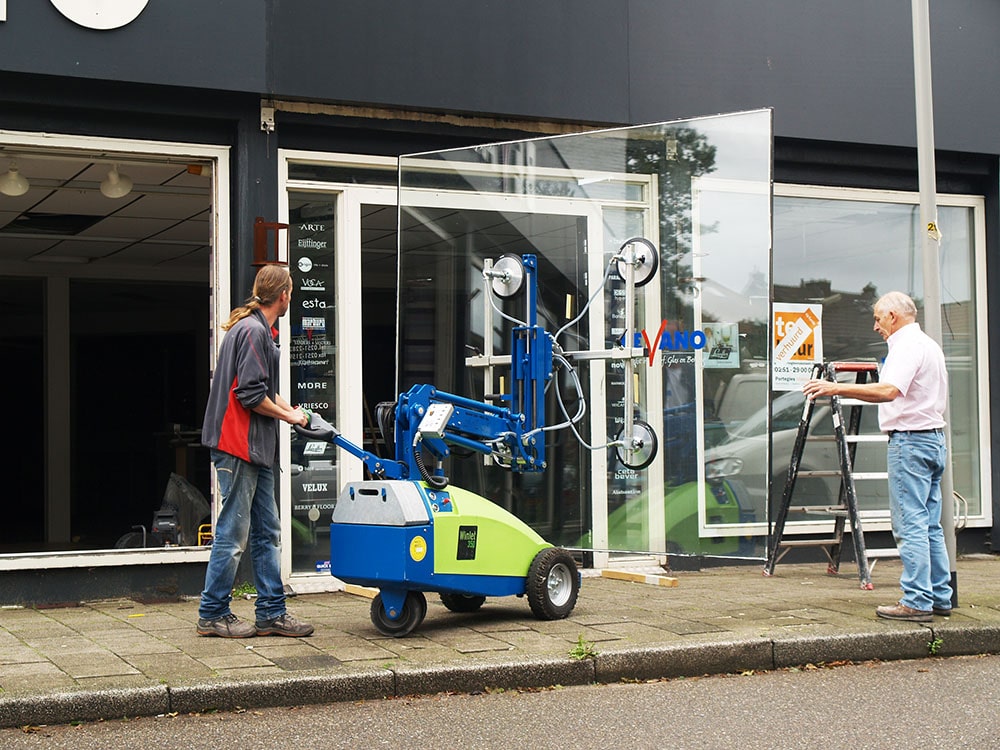

The Winlet 770 increases efficiency and speed in glass and window installation while improving safety in the workplace. The Winlet 770 features 4 suction cups which will hold up to 770 lbs. of material. The Winlet will carry any type of air tight material including: granite, concrete, steel, aluminum, wooden plates, tiles and fire doors just to name a few. Other features of the Winlet are:
-Self propelled
-Access narrow doorways, elevators and balconies
-Twin wheels for rough terrain operation
-User friendly and easy to transport
Specifications
Standard Equipment
- Single door access
- Remote control
- Battery operated
- Self-propelled
- 4 Suction Cups
- Double action safety keys
Performance
| Max Lifting capacity | 770lb |
| Max load -max extension | 440lb |
| Max Lifting height | 9ft4in |
| Continuous Rotation | 360° |
| Tilt function | 140° |
| Batteries: | 2 X 75 AH |

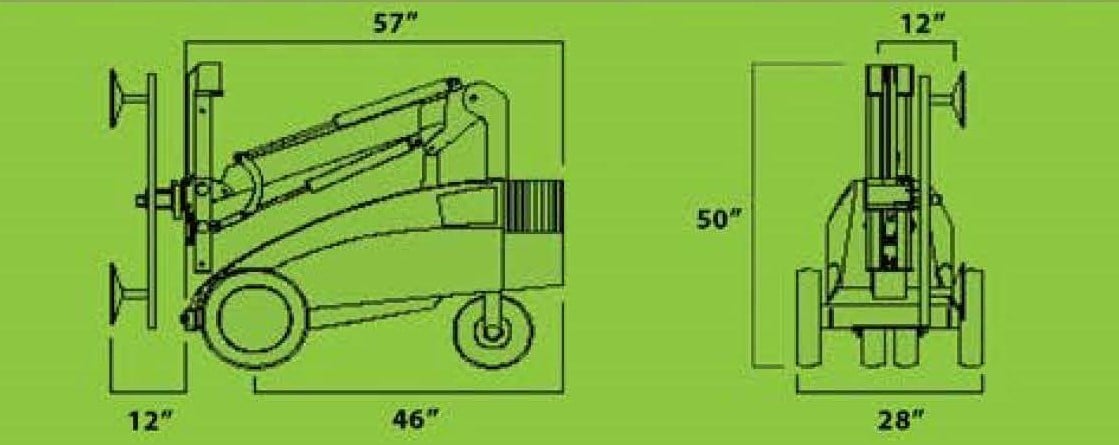

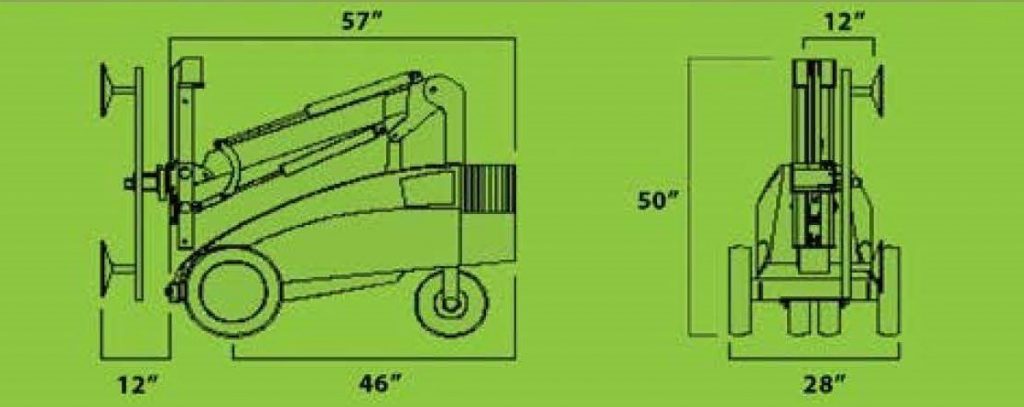

Dimensions
| Height | 4ft2in |
| Length Stowed | 4ft9in |
| Width | 2ft3in |
| Weight | 1090lb |
| Suction cups | 4 |
| Size | 4 X 10-3/4in |
Power Source
| Batteries | Standard |

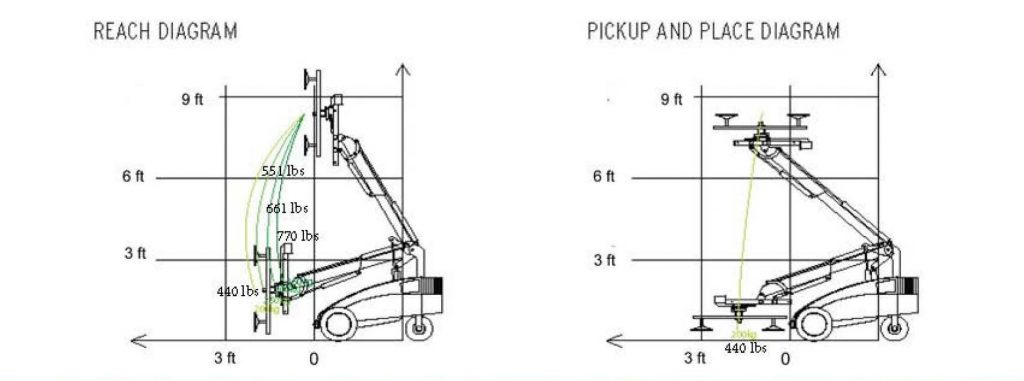

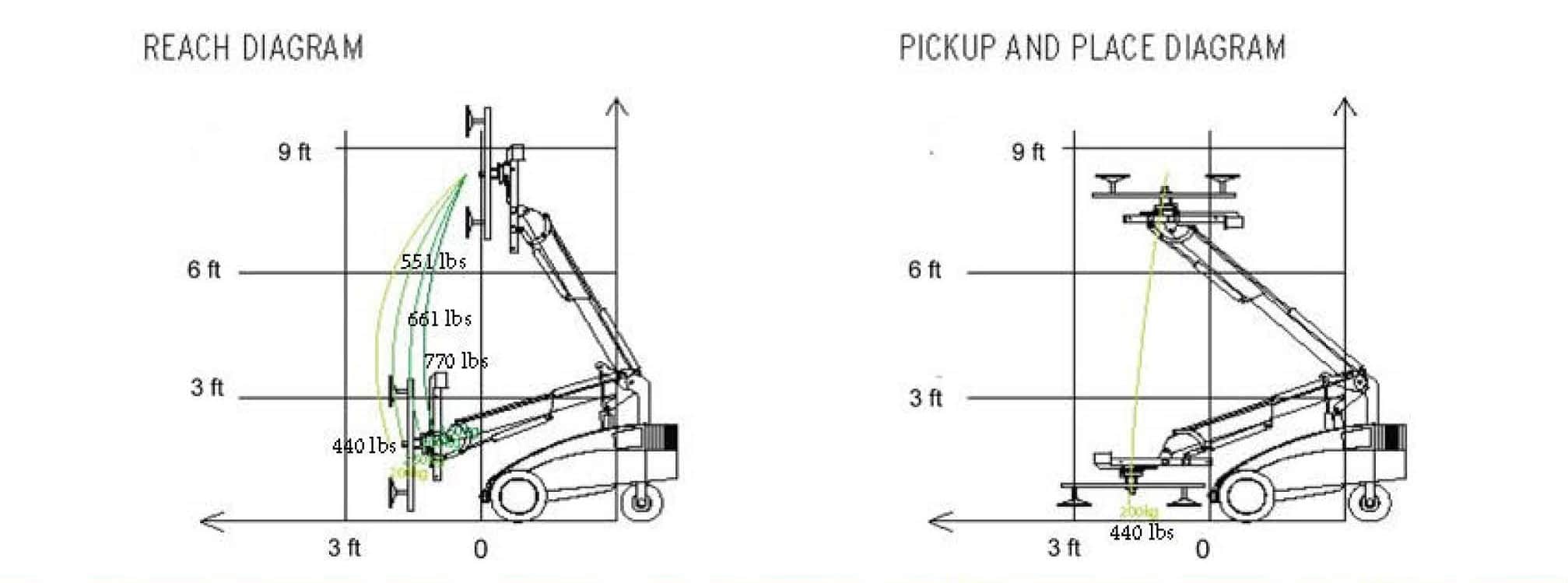

Reach Envelope
