Ruthmann Ecoline 75A

Ecoline, Ruthmann
Building Maintenance, Construction, Electric Utilities, FORESTRY & TREE CARE, Sign, Light & Traffic, Telecommunications, Wind Energy, Window Washing
Ecoline, Ruthmann

Product Overview

Working Height
75 ft 22.9 m
Horizontal Reach
48.5 ft 14.8 m
Platform Capacity
550 lbs 250 kg
Below Grade Reach
78 ft (23.7 m)
Cockpit Controls
COCKPIT intelligent control system
Reach System
Operator Control System
Platform Rotation
Maximum Vehicle Inclination
25‘5“ 7.7 m
Platform Size
51“ x 28“ 1.3m x 0.7m
Ford Transit 250 Chassis
Under 10,000 pounds GVWR
No DOT medical card needed
Compact Package

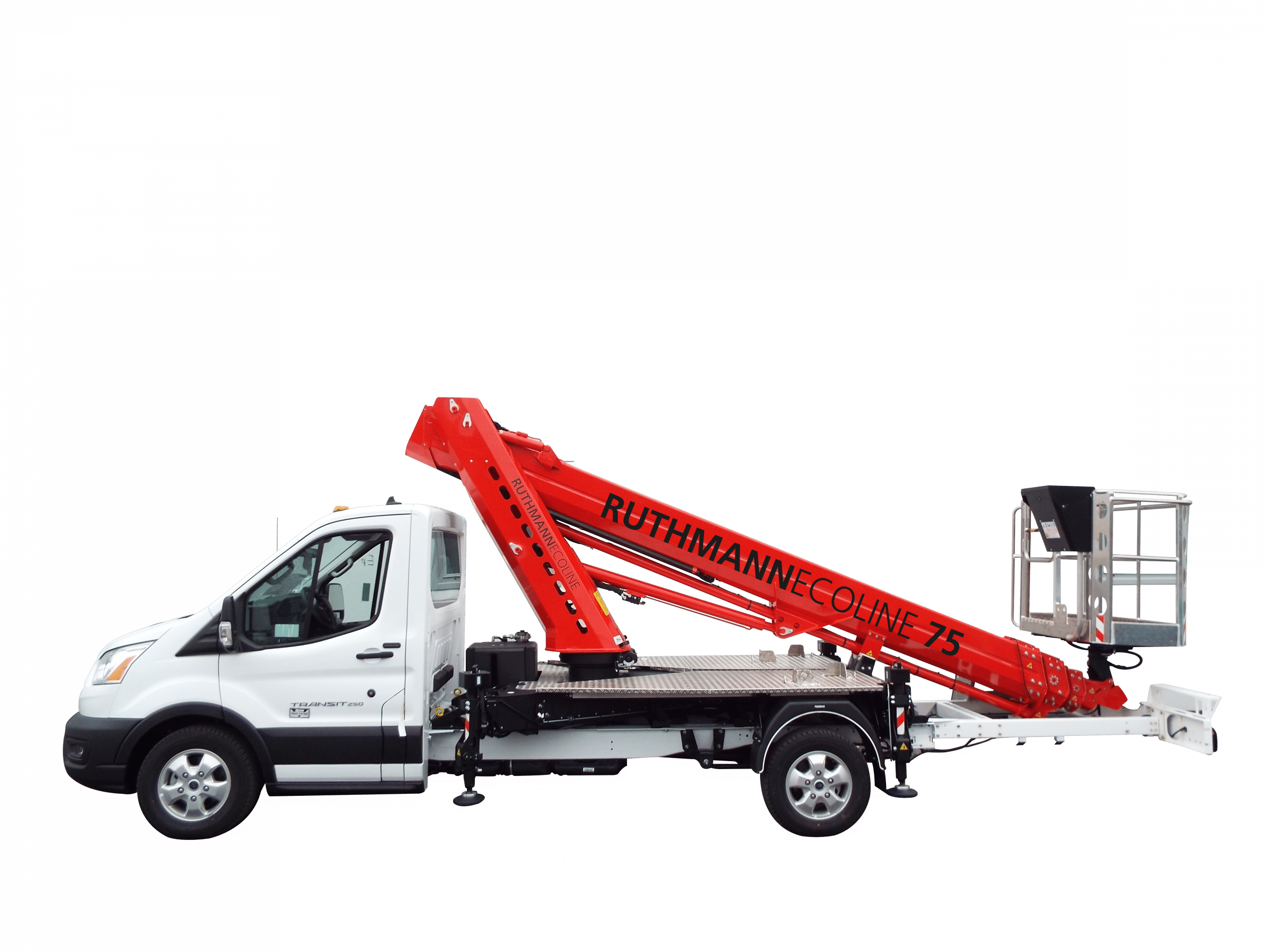

Truck Mounted Aerial Lifts – Ecoline 75A
Truck mounted aerial lifts designed and engineered by Ruthmann for the United States and Canadian markets include the Ecoline 75. This unit has the smallest working envelope of the portfolio of Ruthmann engineered aerial lifts for North America. With a working height of 75’ (22.9 m) and a horizontal reach of 48’6” (14.8 m), this unit has 550 lbs (250 kg) of platform capacity, and has a GVWR of less than 10,000 lbs. No CDL is required to drive Ecoline 75 units. Operators must be independently certified to operate the aerial lift itself.

Truck Mounted Aerial Lift Features & Benefits – Ecoline 75A
Truck mounted aerial lifts presented by Ruthmann Reachmaster are known for flexibility and lightweight efficiency. Ecoline 75A units also meet the requirements of ANSI A92.2 and CSA C225  with 3rd party certification of compliance. Ecoline 75A operators experience smooth maneuvering with its multi-bevel boom shape coupled with high resolution controls. Ecoline 75A units have operator selectable wind speed ratings up to 28 mph ( 12.5 m/s).

Contact Ruthmann Reachmaster today –  experience a personal touch and excellent customer service.
