Ruthmann T-166A

High Access, Ruthmann, Steiger
Building Maintenance, Electric Utilities, FORESTRY & TREE CARE, Wind Energy, Window Washing
High Access, Ruthmann, Steiger

Product Overview

Working Height
166 ft (50 m)
Horizontal Reach
98 ft (30 m)
Platform Capacity
1300 lb. (590 kg)
Below Grade Reach
38‘ (11.5 m)
Cockpit Controls
COCKPIT intelligent control system
Reach System
Dynamic Reach System Available
Platform Rotation
Maximum Vehicle Inclination
49'3" (15 m)
Platform Size
12‘6“ x 3‘2“ 3.7m x 1.07m
58,000 lbs.
Freightliner 114SD Chassis
Additional Information
Bridge Law Legal
Multi-beveled boom profile
Auto outrigger setting and leveling
ANSI A92.2 and CSA C225 compliant
US Federal Bridge Law legal

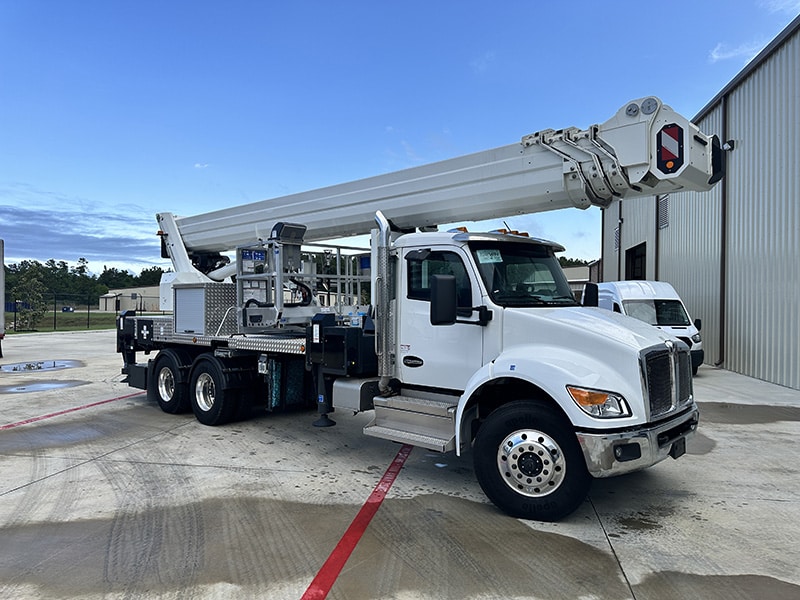

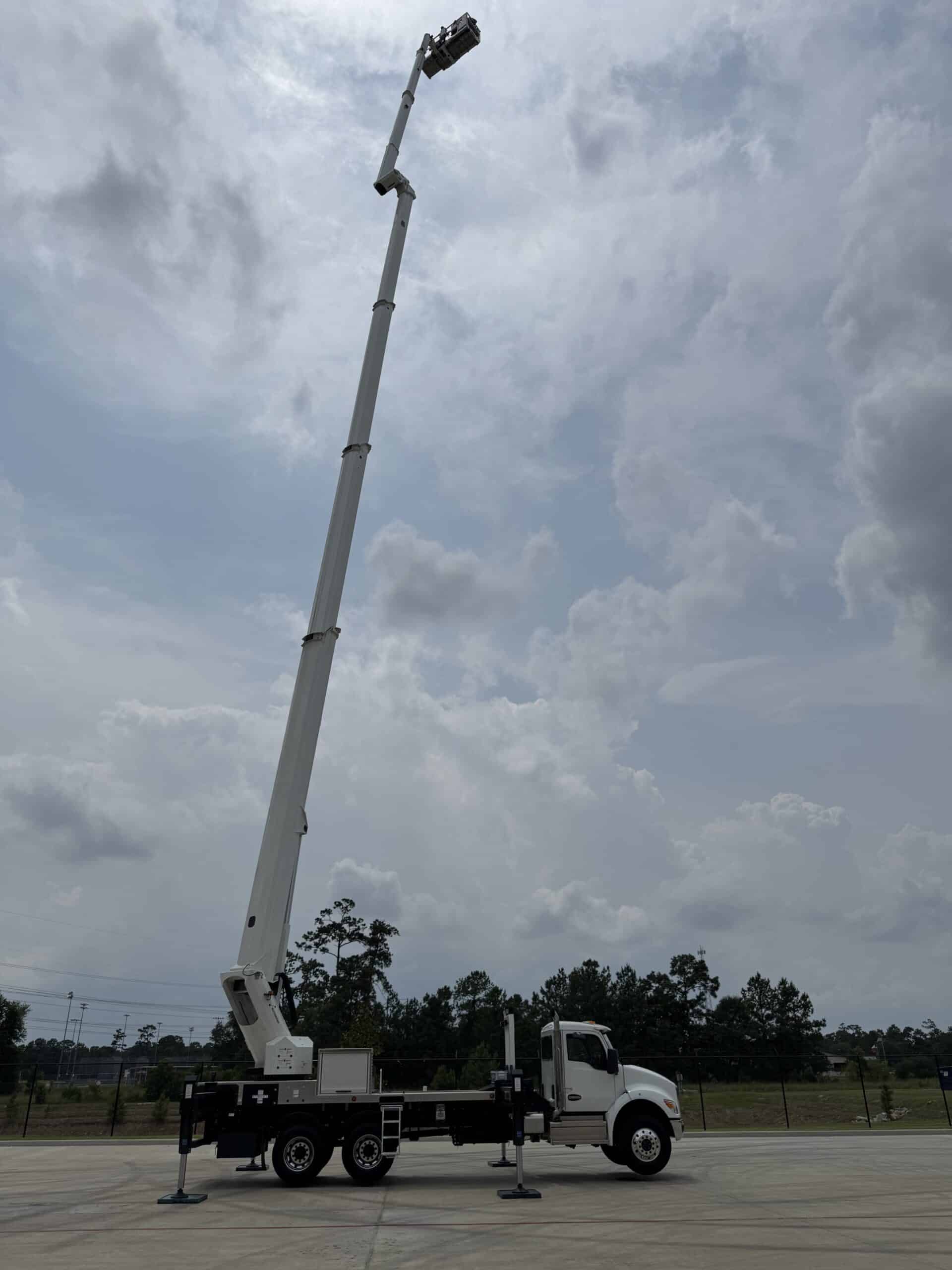

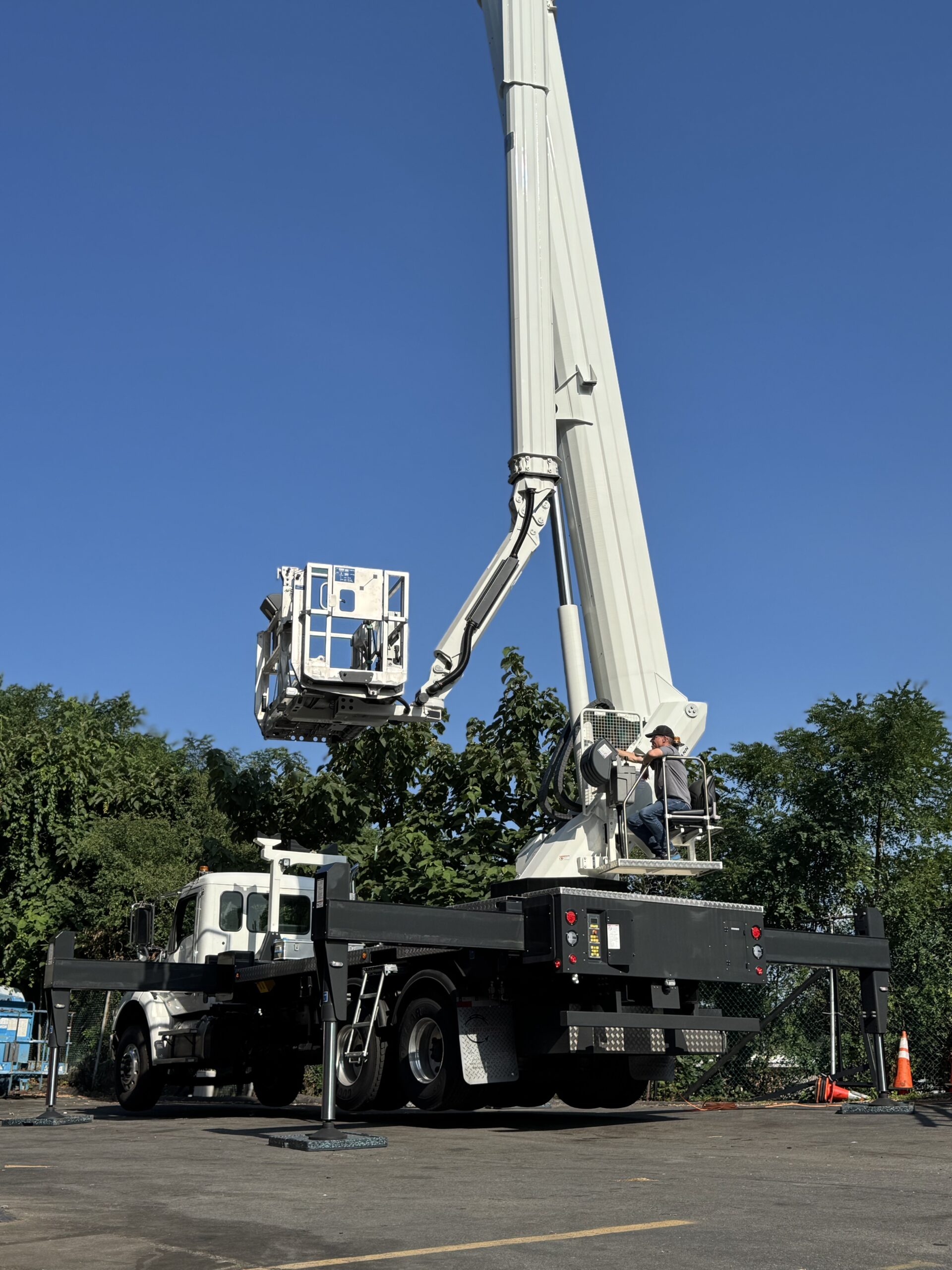

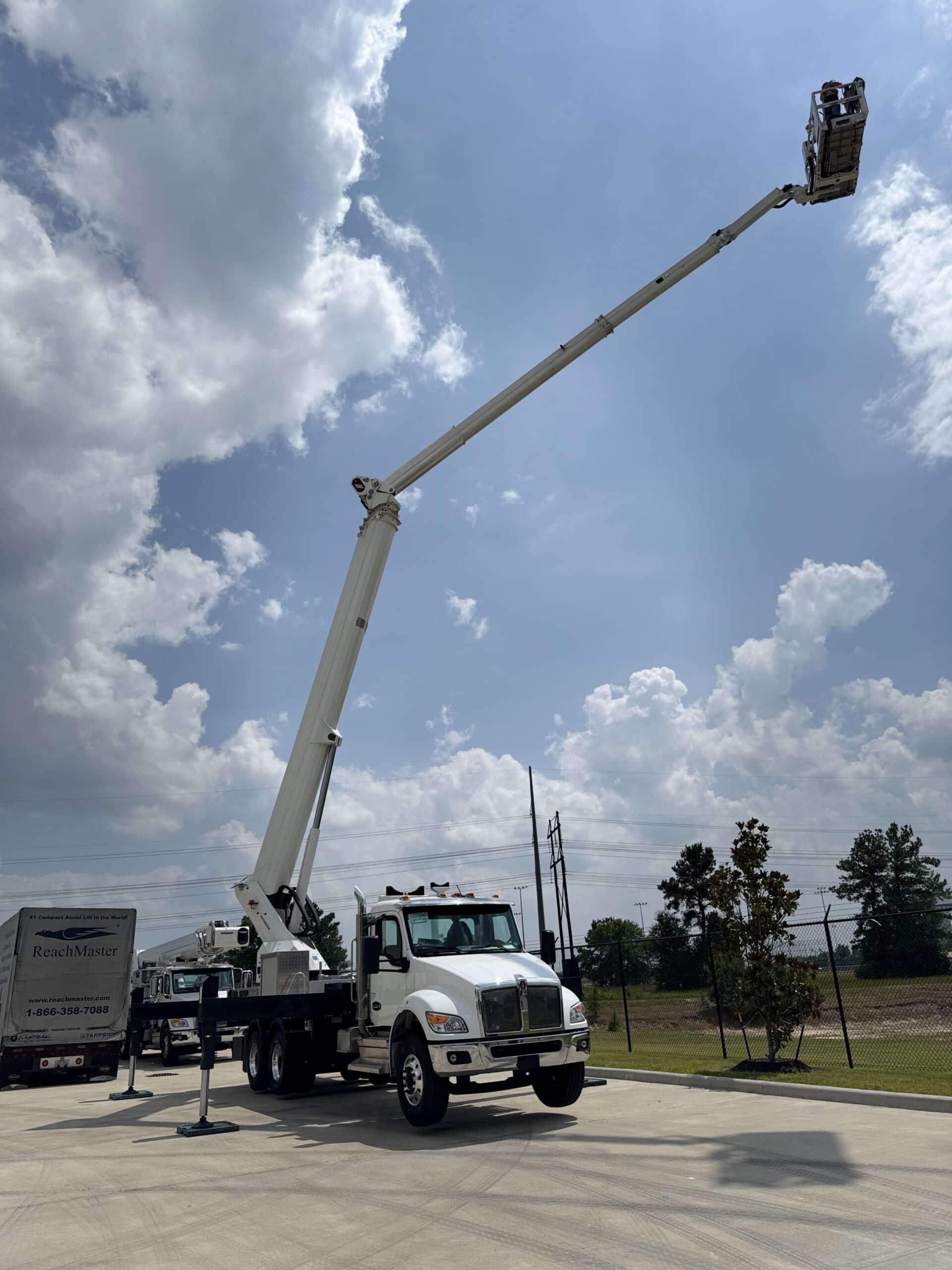

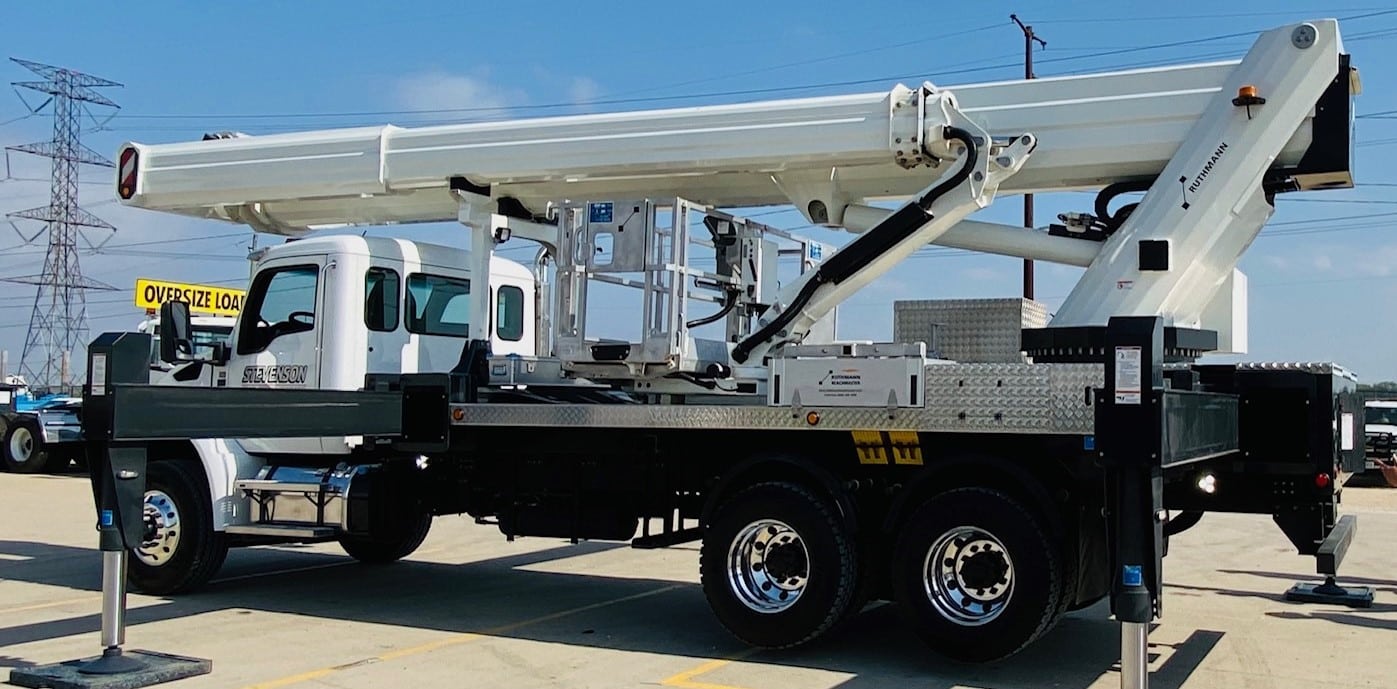

Truck Mounted Aerial Lifts – Ruthmann Steiger T-166A
Truck mounted aerial lifts manufactured by Ruthmann include the Ruthmann Steiger T-166A high reach work platform. Highly capable and versatile, the Steiger T-166A has a working height of 166 feet (50.6 m), horizontal reach of 98 ft (29.9 m), and a load capacity of 1,300 lbs (590 kg).
Truck Mounted Aerial Lift Benefits – Ruthmann Steiger T-166A
Truck mounted aerial lifts are available for purchase in North America through Ruthmann Reachmaster. Steiger T-166A vehicle mounted aerial lifts provide a broad range of benefits to electric utility fleets, infrastructure maintenance crews, refinery inspection teams and wind farm maintenance engineers, including the following longest horizontal reach in the industry. Because all Steiger high access aerial lifts are built with common electronic and hydraulic parts, they are the easiest high reach units to service. This benefit extends to all Ruthmann high reach vehicle mounted aerial lifts. Operators have a choice of options for  wind speed ratings that reach up to 43 mph (19 meters per second), 28 mph (12.5 m/s)  is standard. The unique, multi-bevel boom shape, working in concert with high resolution controls, produces the best-feeling and smoothest-operating high reach aerial lifts in the world.  This Ruthmann Steiger T-166A truck mounted aerial lift meets the requirements of ANSI A92.2 and CSA C225, with 3rd party certification of compliance.
Truck Mounted Aerial Lift Specifications
Truck mounted aerial lifts manufactured by Ruthmann are known for their quality and for their large working envelopes. With a working height of 166 ft (50.6 m) and horizontal reach of 98 ft (29.9 m), this unit has a large work basket featuring 180° rotation.  Work basket size is 12′ 6″ x 3′ 2″ (3.8 m x 0.97 m) with a load capacity of 1,300 lbs (590 kg).

Contact Ruthmann Reachmaster today –  experience a personal touch and excellent customer service.
