BIBI 33BL-W

BIBI 33BL-W

Compact Lifts
TYPE
Compact Lifts
MODEL SERIES
BIBI

Product Overview

Specifications

Standard Equipment

  • Tracked scissor lift
  • Bi-leveling tracks
  • Easy Drive System
  • Honda engine
  • Non marking tracks
  • Basket capacity – 661lbs
  • Expandable basket
  • Remote control with lanyard
  • Direction control

Performance

Working height 32ft9in
Max height basket floor 26ft2in
Basket load-max 661lbs
Basket dims 4ft11in x 2ft8in
Basket leveling Automatic
Leveling -Front +/- 16°
Leveling – Rear +/- 25°
Side Leveling +/- 15°

Dimensions

Height – folded railings 6ft10in
Height – tracks wide position 9ft
Height – tracks narrow position 9ft7in
Length 7ft5in
Width tracks 4ft9in – 5ft4in
Weight (approx) 6239 lbs
Tracks Bi leveling
Drive gradeability 25°
Side Slope 21°
Hydraulic commands Proportional
Direction control Yes
Inclination control Automatic
Ground emergency Yes

Power Source

Honda Standard
Hatz Diesel Option

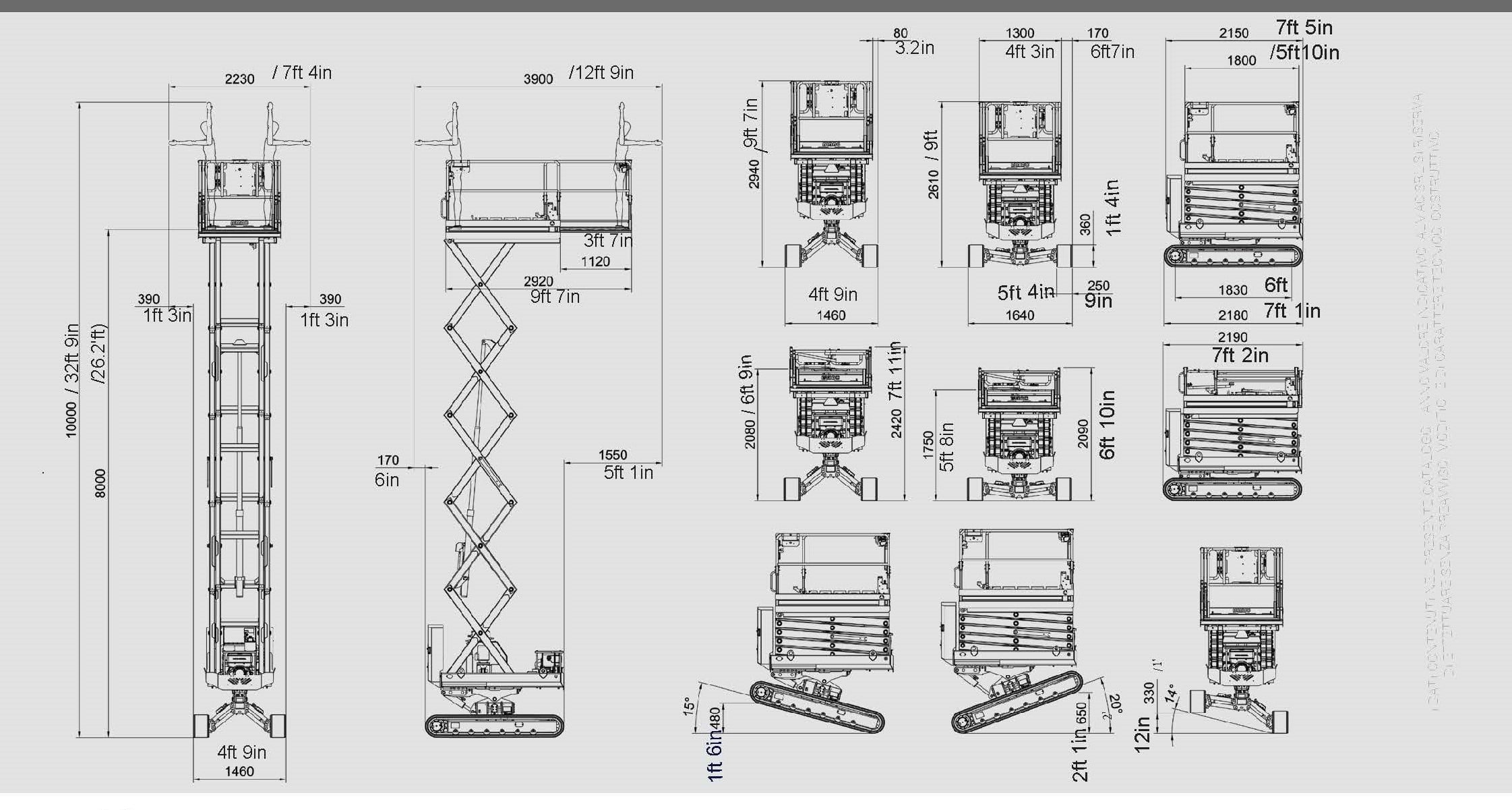

Reach Envelope
