Ruthmann TU-93A – No CDL

Eagle, Ruthmann
Building Maintenance, Electric Utilities, FORESTRY & TREE CARE, Sign, Light & Traffic, Wind Energy, Window Washing
Eagle, Ruthmann

Product Overview

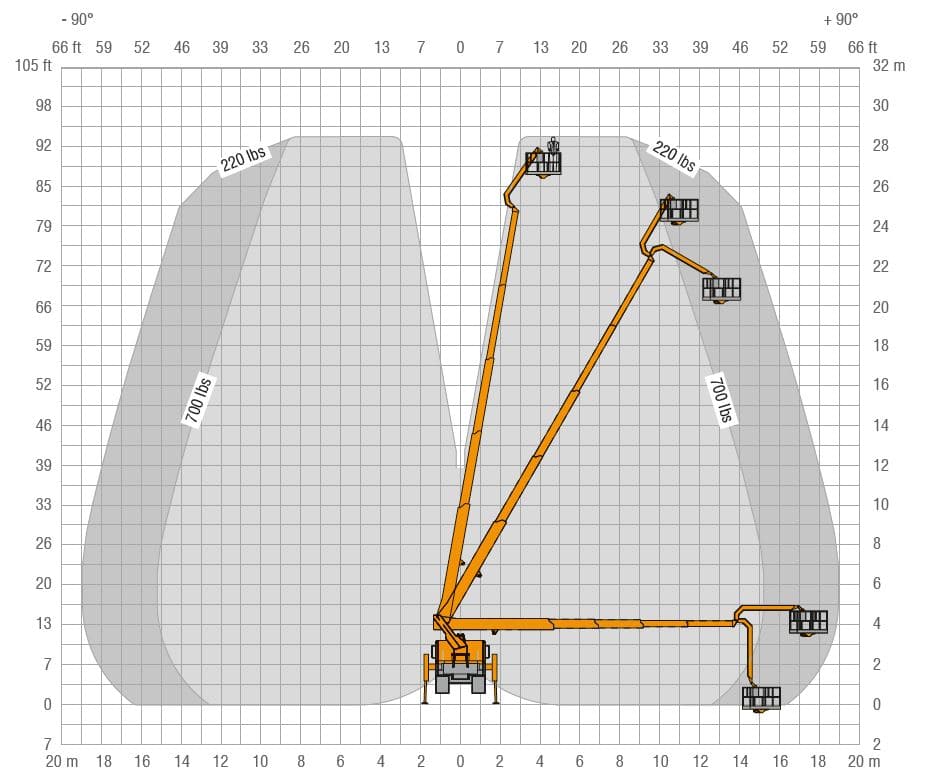

Working Height
93 ft 28.5 m
Horizontal Reach
62 ft 3 in 19 m
Platform Capacity
700 lbs 300 kg
Cockpit Controls
COCKPIT intelligent control system
Reach System
Operator Control System
Platform Rotation
Maximum Vehicle Inclination
28‘ 8‘‘ 8729 mm
Platform Size
67 x 34 in (1.7 x .86m)
Ford F 650 - 6.7 l Power Stroke Diesel
Under 26000 lbs GVWR - Below CDL
Additional Information
Auto outrigger setting and leveling
Multi-beveled boomprofile
Straight telescopic boom with jib
Air or Hydraulic Brakes available

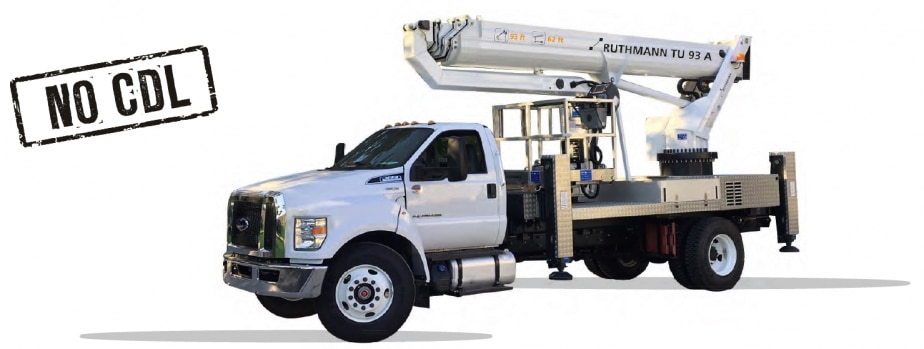

Truck Mounted Aerial Lifts – Ruthmann Eagle TU-93
Truck mounted aerial lifts that are built by Ruthmann for the North American market include the Eagle TU-93. This unit is designed for maneuverability and smooth operation, with a maximum working height of 93’, horizontal outreach of 62’ 3” and a GVWR of less than 26,000 lbs.
Truck Mounted Aerial Lifts – Features & Benefits of the Ruthmann Eagle TU-93
Truck mounted aerial lift features of the Eagle TU-93 include a large working envelope, auto outrigger setting and leveling, convenient service and maintenance options and smooth aerial lift operation. The Eagle TU-93 is lightweight enough to not require a CDL to drive, which is a huge advantage on a truck mounted aerial device with such a large horizontal and vertical reach. All operators and technicians must be certified by the owner to use this equipment. Engineered by Ruthmann to be maintained using common electronic and hydraulic parts across all products, Ruthmann telescoping aerial lifts feature a multi-bevel boom shape, which, coupled with high resolution controls, produces very smooth operation.

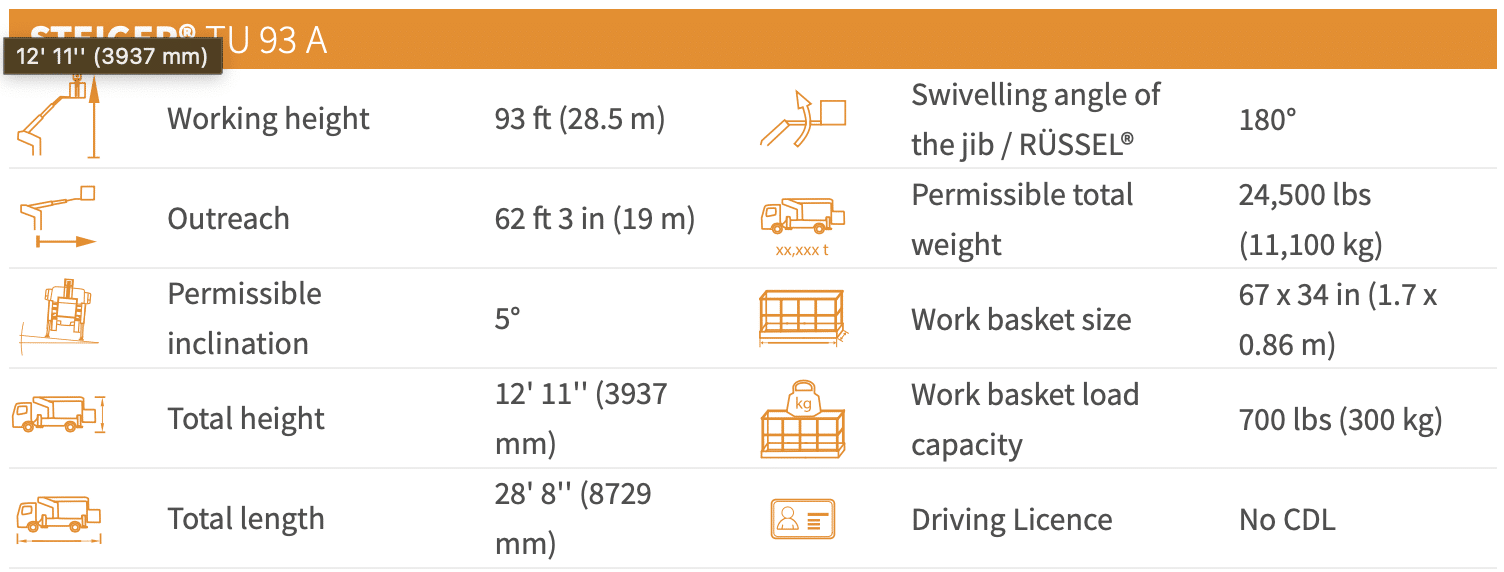

Truck Mounted – Ruthmann Eagle T-93 – Aerial Lift Specifications
Ruthmann TU-93 truck mounted aerial lifts offer 93’ working height, 62’ 3”  horizontal outreach, while maintaining a gross vehicle weight of less than 26,000 lbs. By remaining below CDL, this unit allows technicians who do not have commercial driver licenses to drive.  With 700 lbs of basket capacity, the Ruthmann Eagle T-93 features the COCKPIT control unit with digital display. All Ruthmann vehicle mounted aerial lifts meet the requirements of ANSI A92.2 and CSA C225, with 3rd party certification of compliance.

Contact Ruthmann Reachmaster today –  experience a personal touch and excellent customer service.
