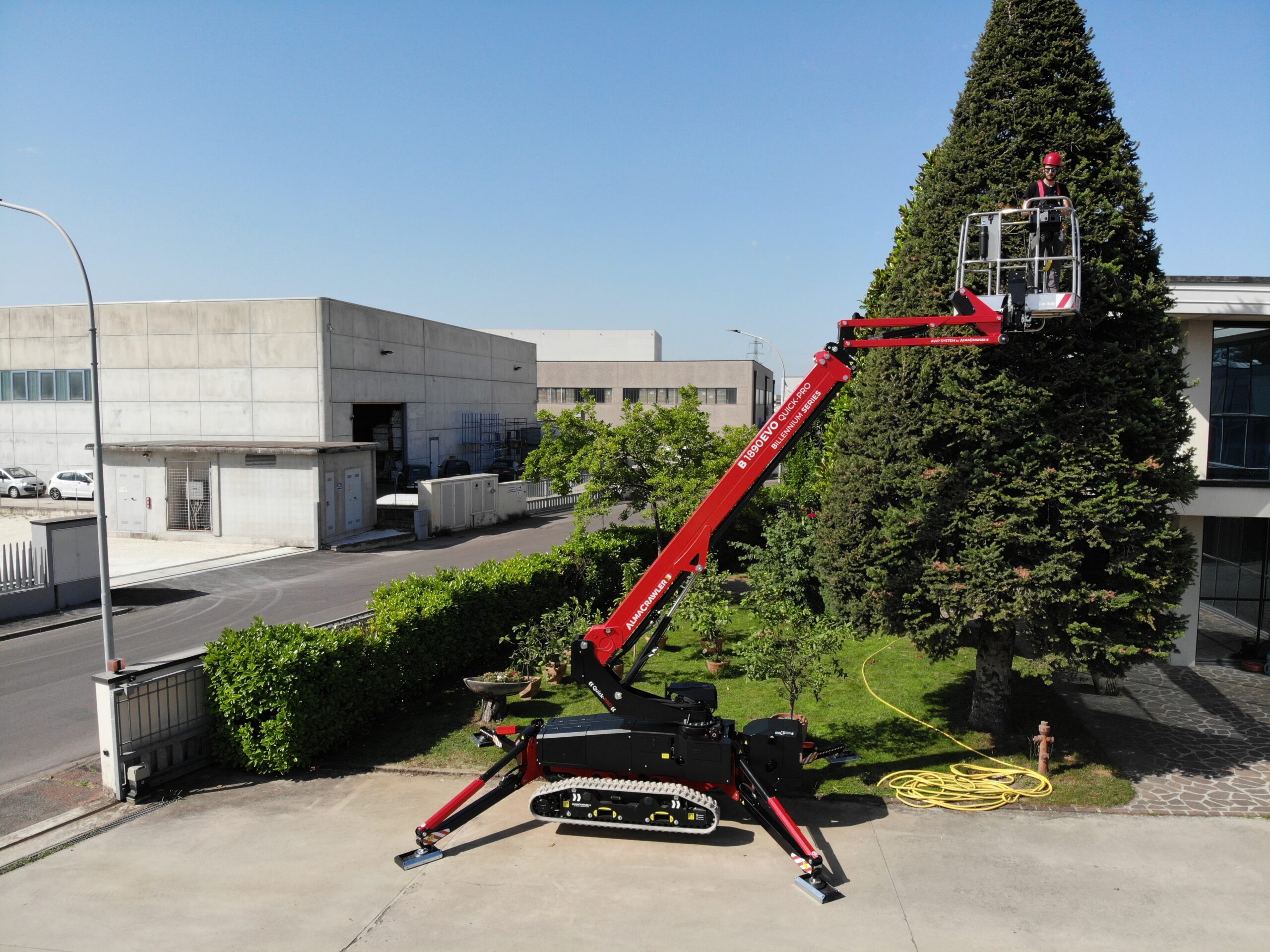

BILLENNIUM B 59 EVO
Compact Lifts
TYPE
Compact Lifts
MODEL SERIES
BILLENNIUM
Product Overview
Specifications
Standard Equipment
- Full work height 59 feet
- Non marking tracks
- Automatic and Dynamic Leveling
- Pro-active Leveling
- Turret rotation 380°
- Two person basket
- Ultra-sonic Anti-Collision System
- Cable/Wireless Remote Control by AUTEC
Performance
| Working height | 59ft |
| Platform height | 52ft 5in |
| Moving height | 30ft 10in |
| Max outreach- 176 lb | 35ft 5in |
| Max outreach – 308lb | 32ft 1in |
| Max outreach – 551lb | 26ft 10in |
| Basket load-max | 551lbs |
| Basket dims | 4ft7in x 2ft4in |
| Basket rotation | +/- 70º |
| Travel Speed | 1.61 mph |
| Travel Speed Slow | .24 mph |
| Turret rotation | 380º |
| Max gradeability | 20° |
Dimensions
| Height- stowed | 6ft 5in |
| Length (w/o basket) | 16ft 10in |
| Length (w/ basket) | 19ft 1in |
| Width- Min stowed | 2ft 3in |
| Width – Min working | 9ft |
| Width- Max working | 12ft |
| Weight (approx) | 6481lbs |
Power Source
| Yanmar Diesel | Standard |
